Cost-Effective
Non-Thermal Aluminum Systems
Reliable, budget-friendly extrusion profiles and fabricated windows/doors. Ideal for warehouses, interior partitions, and warm climates. Direct from China's premier manufacturer.
Request Wholesale PricingSystem Overview
Our non-thermal aluminum systems provide a highly economical solution for projects where strict thermal insulation is not a primary requirement. Featuring a simple yet robust structure, they offer fast installation, low maintenance, and reliable long-term performance.
Ideal Scenarios
- • Warm Climates
- • Warehouses & Factories
- • Temporary Buildings
- • Interior Partitions
Limitations
- • Low thermal insulation
- • Basic soundproofing
- • Condensation in cold areas
Product Series
Explore our range of non-thermal profiles engineered for specific functional requirements and budgets.

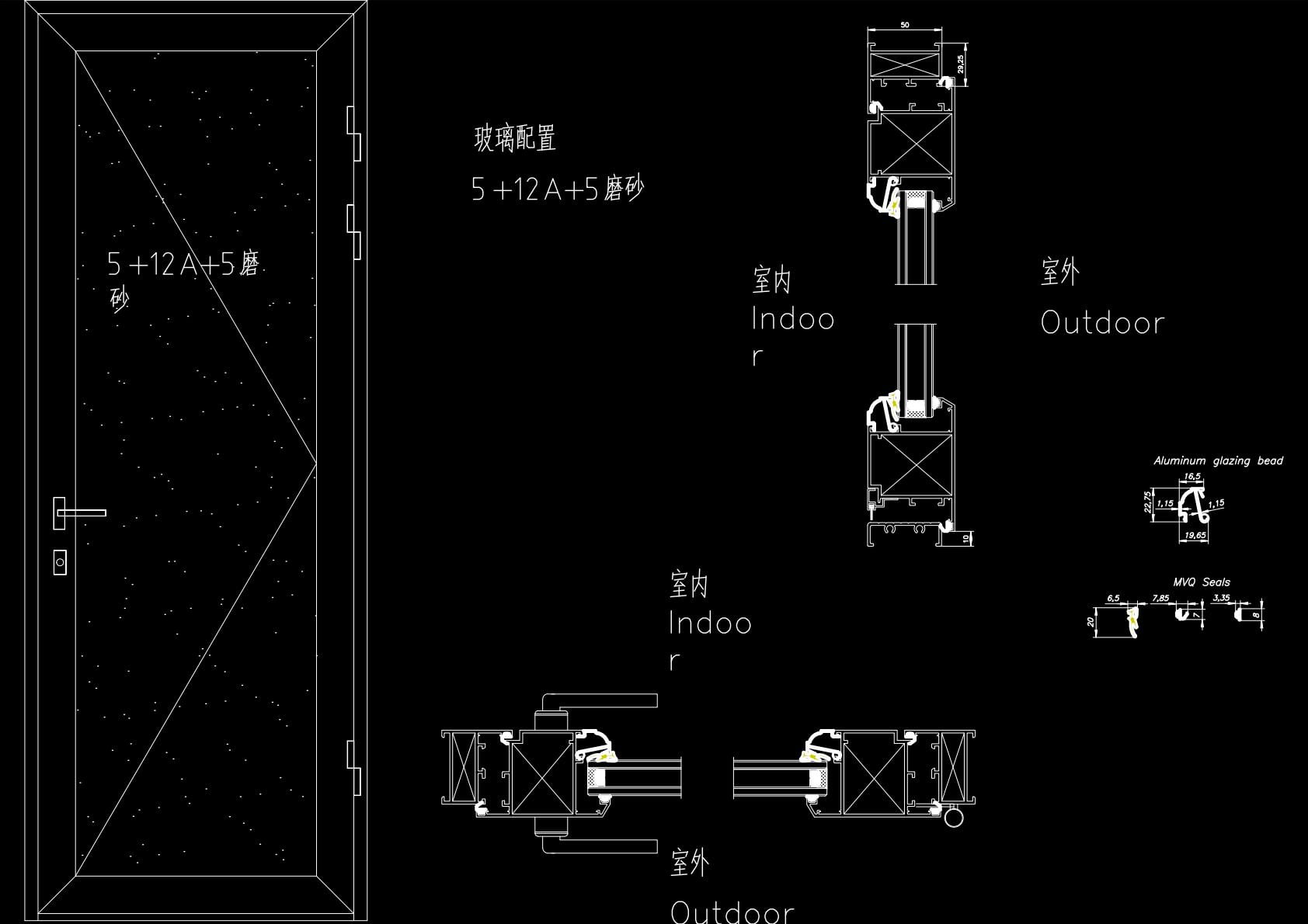

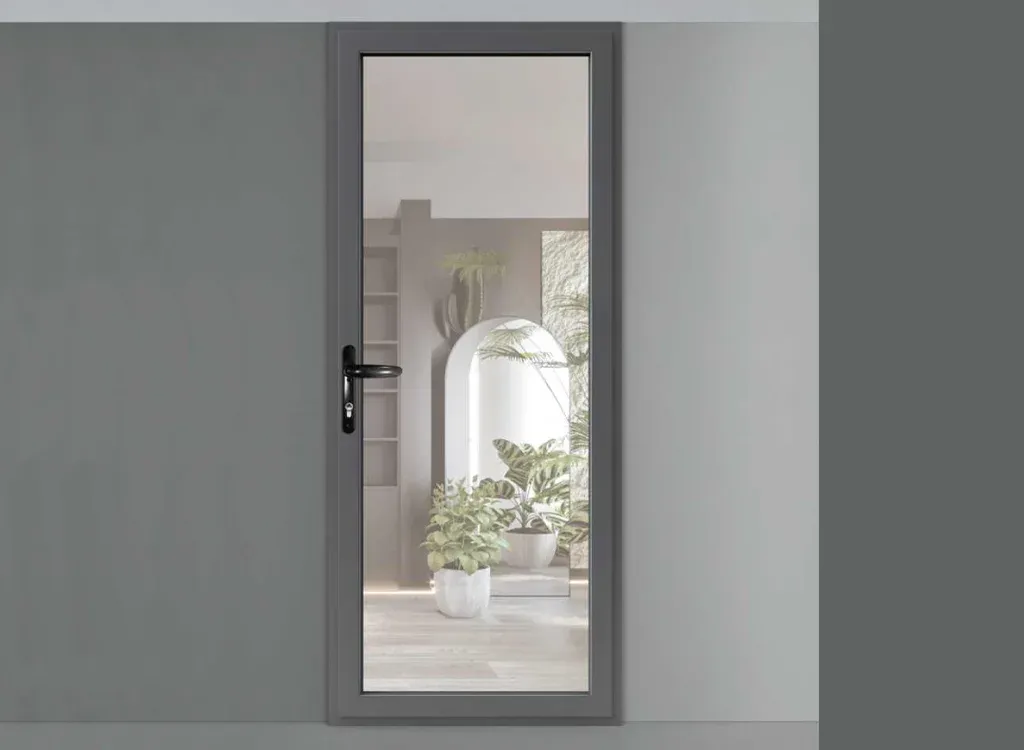

50 Series Non-Thermal
The most economical casement door solution. Designed for basic access and passage needs in commercial, industrial, and temporary architectural applications.
Technical Parameters
- Profile Depth
- 50mm
- Aluminum Thickness
- 1.4mm - 2.0mm
- Glass Compatibility
- Single / Double Glazing
- Opening Style
- Inward / Outward
60 Series Non-Thermal
Featuring a wider profile depth, the 60 series provides enhanced structural integrity, making it suitable for both windows and commercial doors with higher usage frequency.
Technical Parameters
- Profile Depth
- 60mm
- Aluminum Thickness
- 1.4mm - 2.0mm
- Application
- Windows & Hinged Doors
- Hardware
- Standard / Multi-point

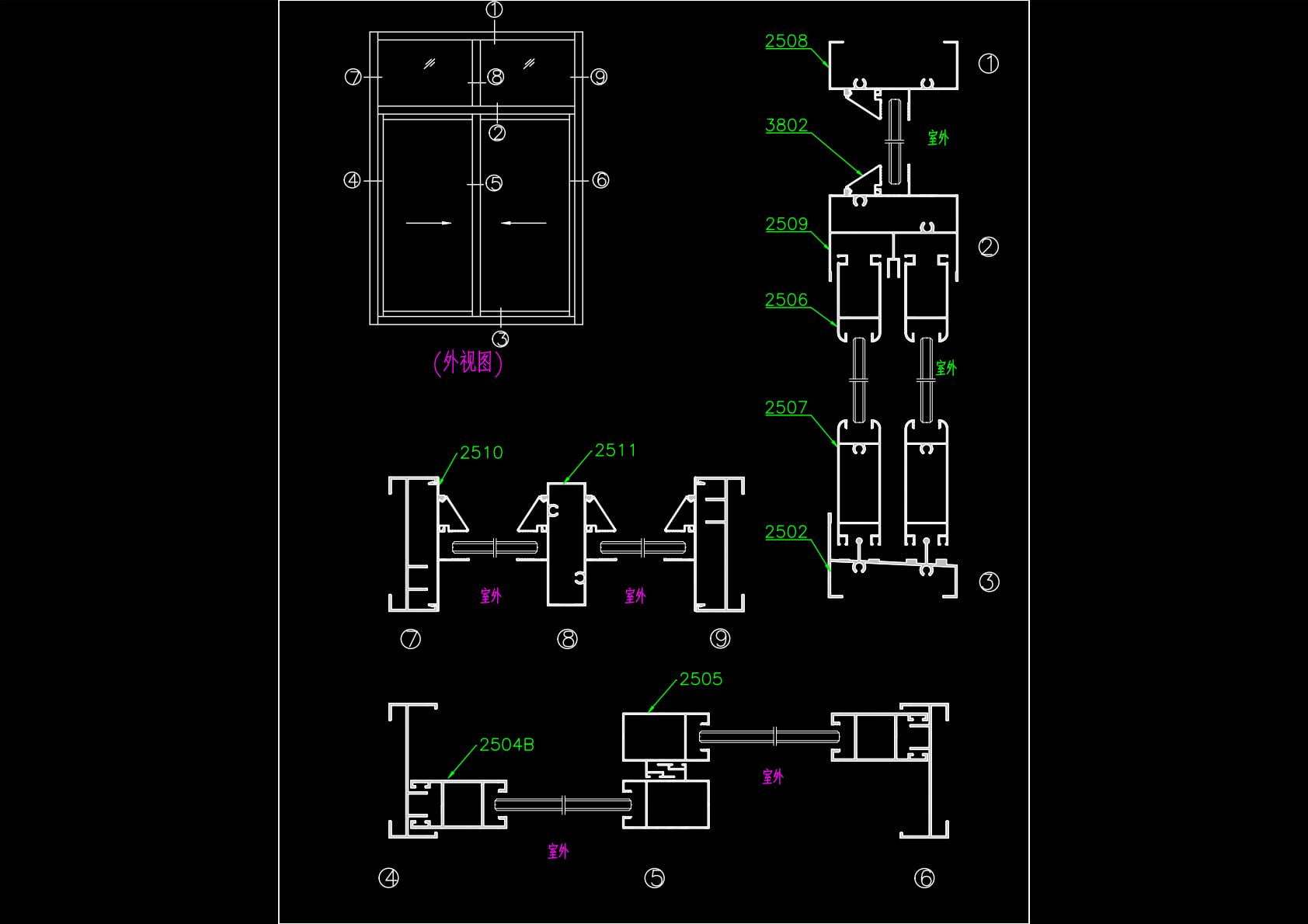

70 Series Non-Thermal
A space-saving sliding mechanism ideal for interior partitions, balconies, and areas where exterior opening space is limited. Smooth operation and easy maintenance.
Technical Parameters
- Profile Depth
- 70mm (Track)
- Aluminum Thickness
- 1.2mm - 1.4mm
- Tracks
- 2-Track / 3-Track (with mesh)
- Operation
- Horizontal Sliding

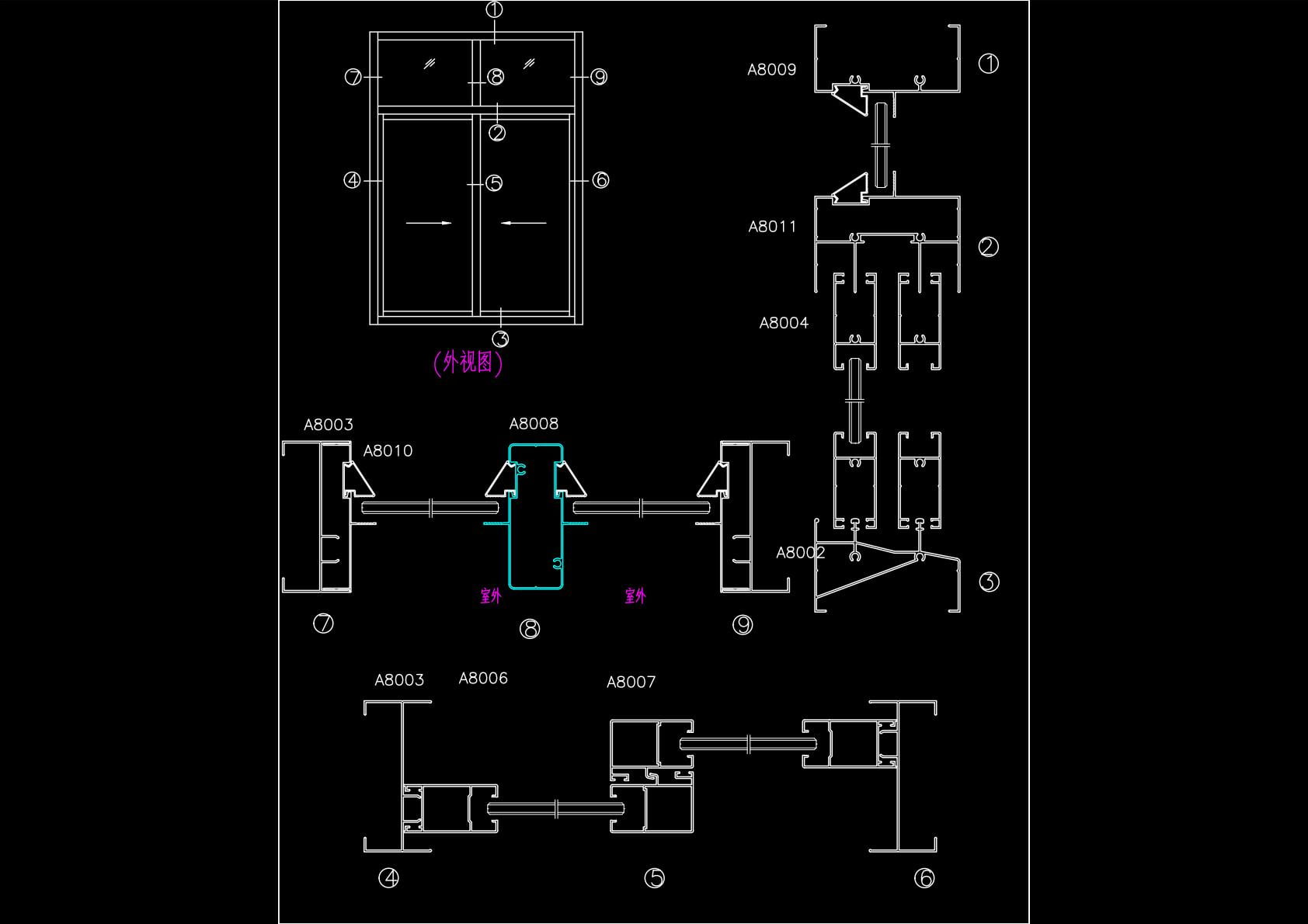

80B Series Non-Thermal
An upgraded sliding system offering enhanced structural stability for wider openings. Better wind resistance among non-thermal sliders, suitable for larger industrial windows.
Technical Parameters
- Profile Depth
- 80mm
- Aluminum Thickness
- 1.4mm (Reinforced)
- Wind Resistance
- Medium to High
- Max Sash Weight
- Up to 80kg
Series Comparison
Compare our non-thermal systems side-by-side to find the perfect match for your project requirements.
| Series | Type | Profile Depth | Standard Thickness | Ideal Application |
|---|---|---|---|---|
| 50 Series | Casement Window | 50mm | 1.2mm - 1.4mm | Basic budget projects, warehouses |
| 60 Series | Casement Window / Door | 60mm | 1.4mm - 2.0mm | Commercial doors, frequent use areas |
| 70 Series | Sliding Window | 70mm | 1.2mm - 1.4mm | Interior partitions, space-saving needs |
| 80B Series | Sliding Window | 80mm | 1.4mm | Wider openings, better wind resistance |
100% In-House
From raw aluminum extrusion to final fabrication, ensuring strict quality control and lower costs.
Stable Quality
High-strength alloys and premium hardware systems designed for long-term durability.
Global Export
Trusted by contractors and wholesalers in the Middle East, SE Asia, Africa, and South America.
Get a Wholesale Quote
Leave your project details or drawing files below. Our engineering team will respond within 24 hours with pricing and technical recommendations.
