High-Performance
Thermal Break Systems
Engineered with premium PA66 insulation profiles. Designed for maximum energy efficiency, acoustic control, and extreme weather resistance. Direct from China's top aluminum manufacturing hub.
PA66
Thermal Barrier
30%
Energy Savings
40dB
Noise Reduction
100%
Customizable
Why Choose Thermal Break?
Our advanced systems utilize a polyamide (PA66) structural barrier to separate the interior and exterior aluminum extrusions, drastically reducing heat transfer.
Superior Energy Efficiency
Minimizes thermal conduction, keeping interiors warm in winter and cool in summer. Complies with strict global green building standards.
Weather & Acoustic Proof
Multi-cavity designs combined with automotive-grade EPDM sealing strips provide exceptional water tightness and sound insulation up to 40dB.

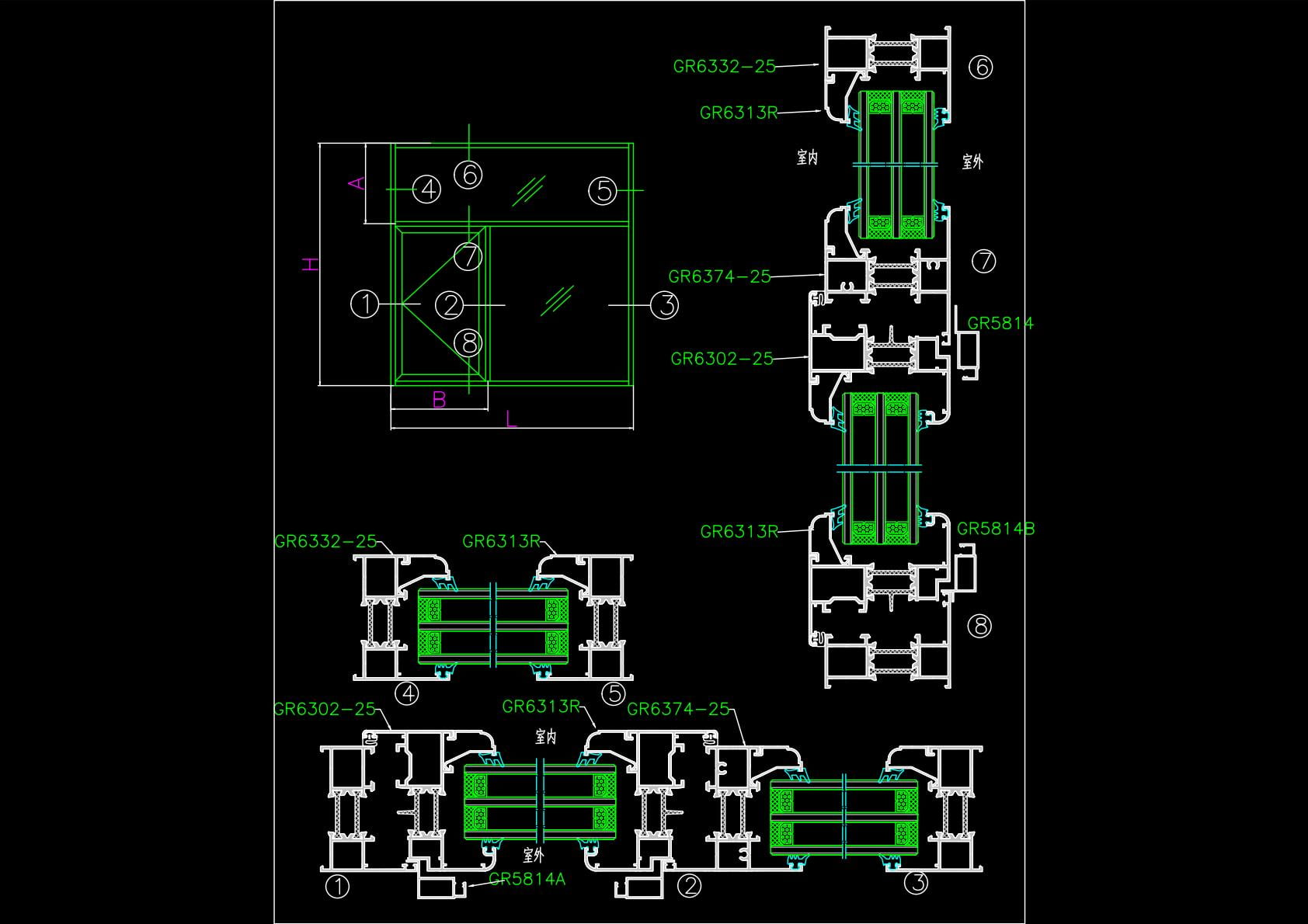

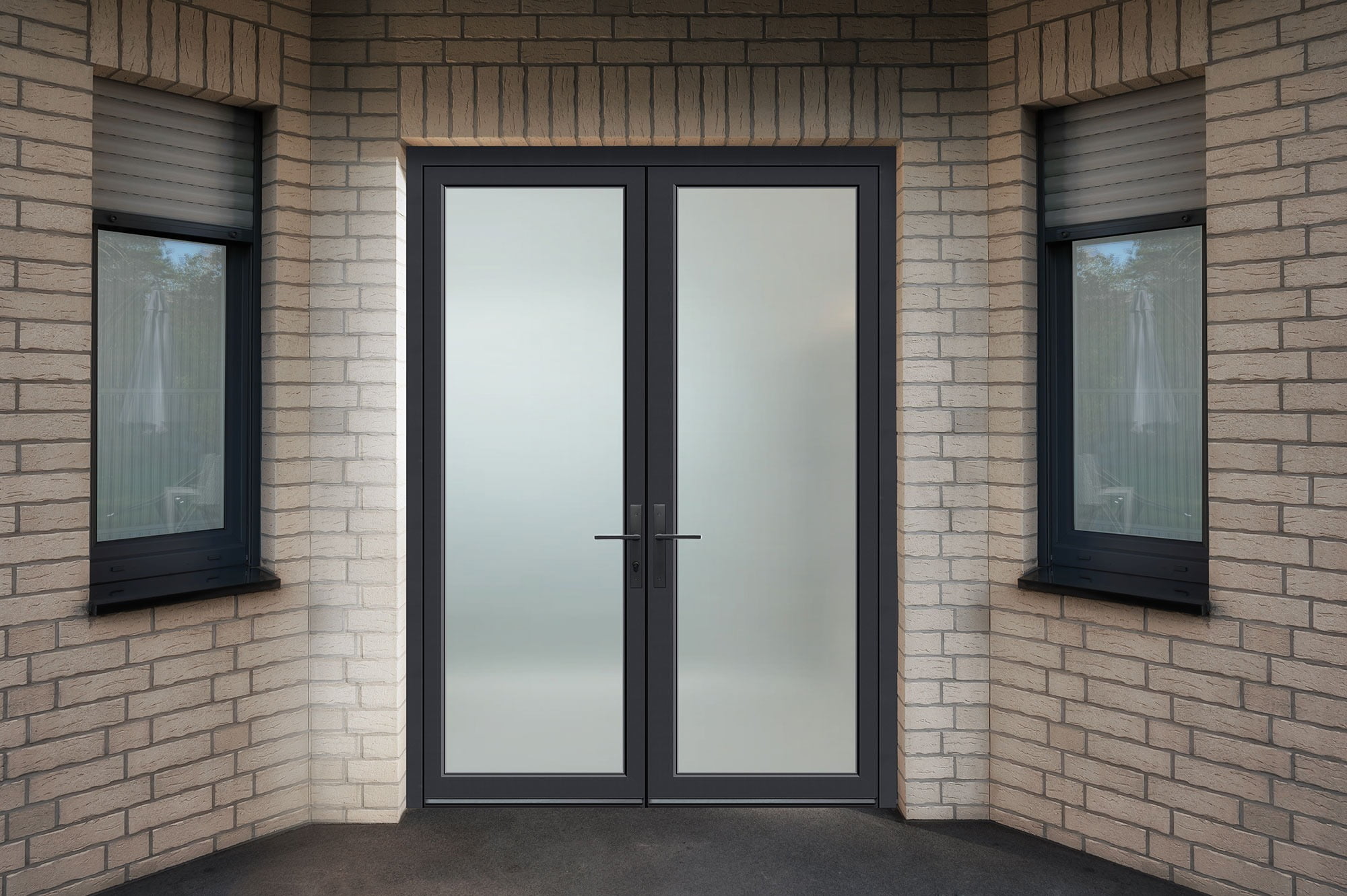

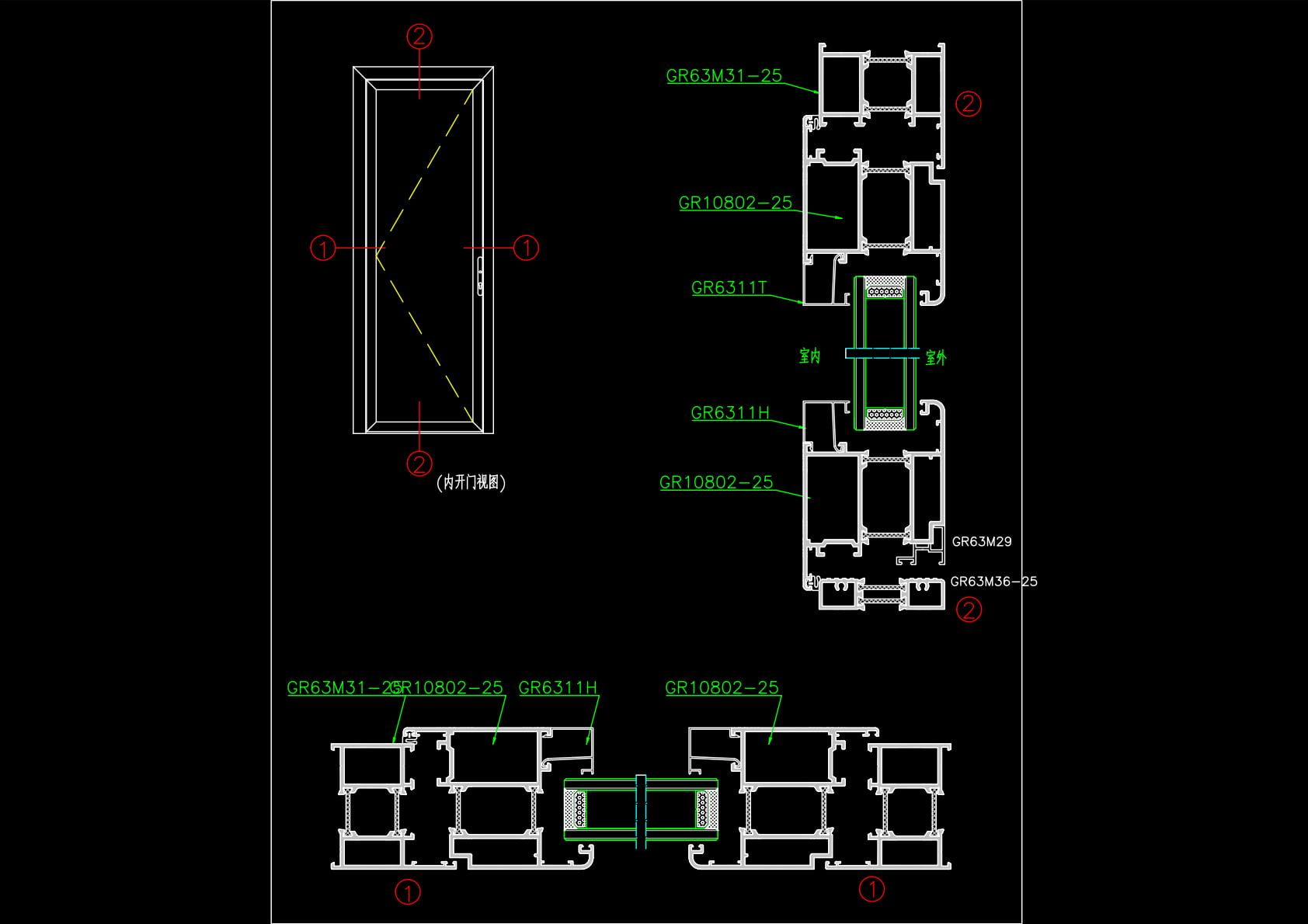

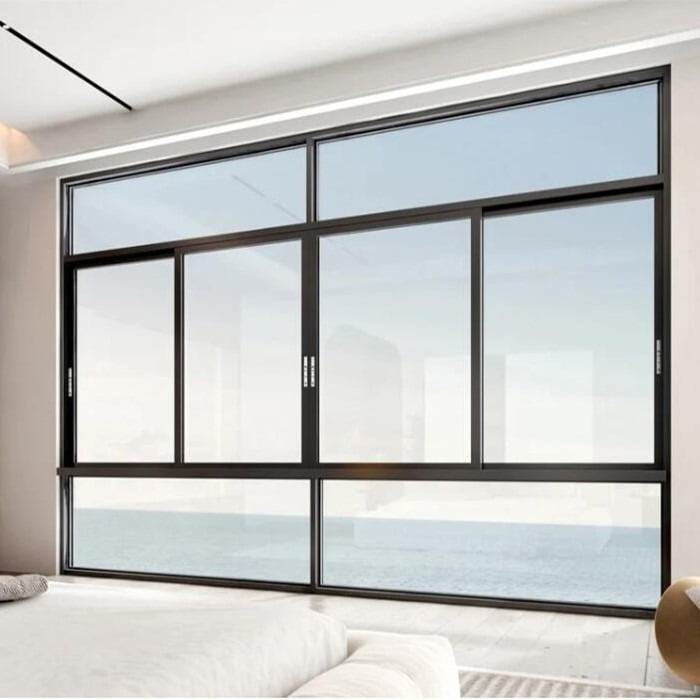

60 Series Thermal Windows & Doors
The perfect balance of cost and performance. Our 60 Series features a robust thermal break structure ideal for residential and standard commercial projects. Supports both casement and awning configurations.
Performance Data
- Profile Thickness: 1.4mm - 2.0mm
- Glass: Double/Triple Glazing
- Hardware: HOPO, KINLONG, SIEGENIA
- Flyscreen: 304 Stainless Steel Mesh
Extended Thermal Series
From standard configurations to passive house standards, we manufacture a complete range of profile depths to meet any architectural requirement.
65 / 70 Series
Upgraded Insulation
Wider thermal break strips for enhanced energy savings. Ideal for mid-to-high-end residential villas.
- Max Glass Thickness: 32mm
- U-Value: ≤ 1.8 W/m²K
75 / 80 Series
High-Rise Standard
Robust structural integrity designed to withstand high wind loads in commercial towers and high-rise apartments.
- Max Glass Thickness: 42mm
- Wind Load: Class 7
90 Series
Passive House Prep
Triple-cavity design with advanced EPDM co-extrusion. Exceptional acoustic and thermal performance.
- Max Glass Thickness: 50mm
- Acoustic: up to 40dB
100 Series
Ultimate Protection
Integrated window-screen systems and maximum thermal barriers for extreme climates and luxury projects.
- Integrated Security Mesh
- U-Value: ≤ 1.2 W/m²K

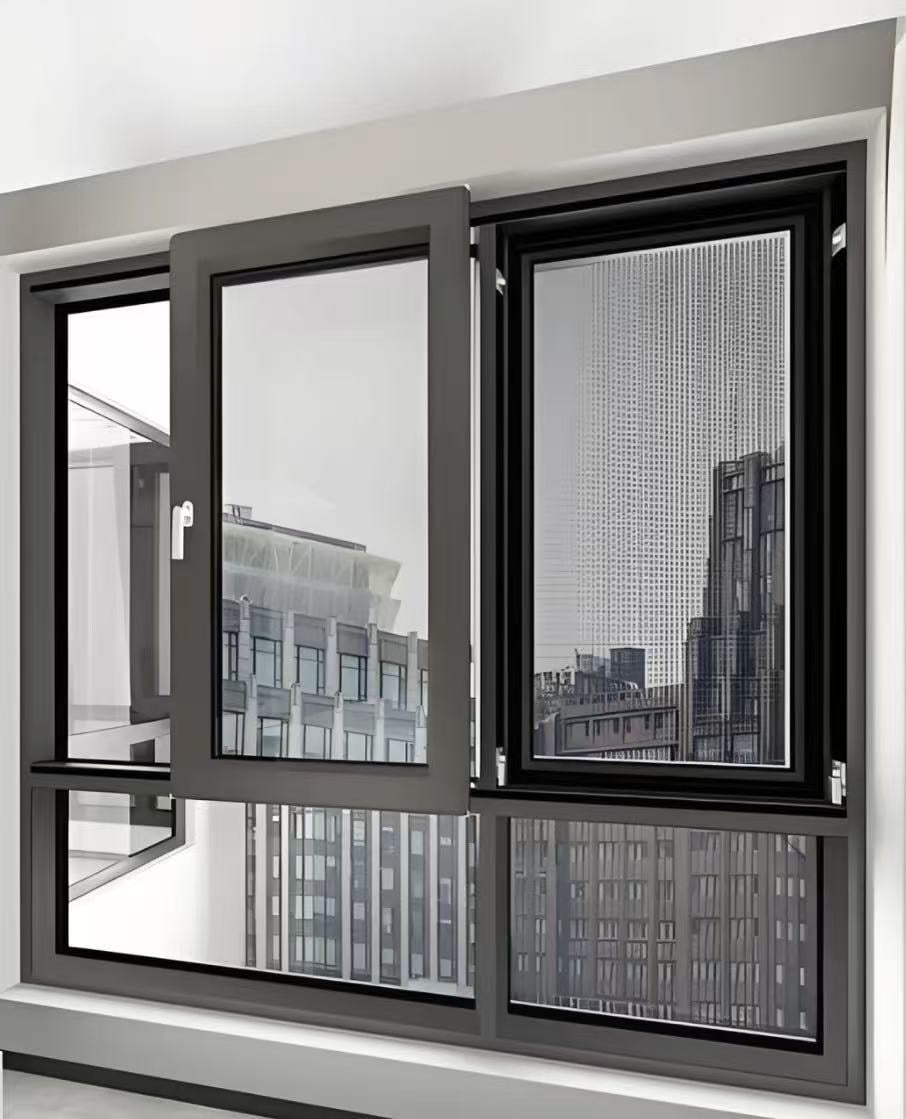

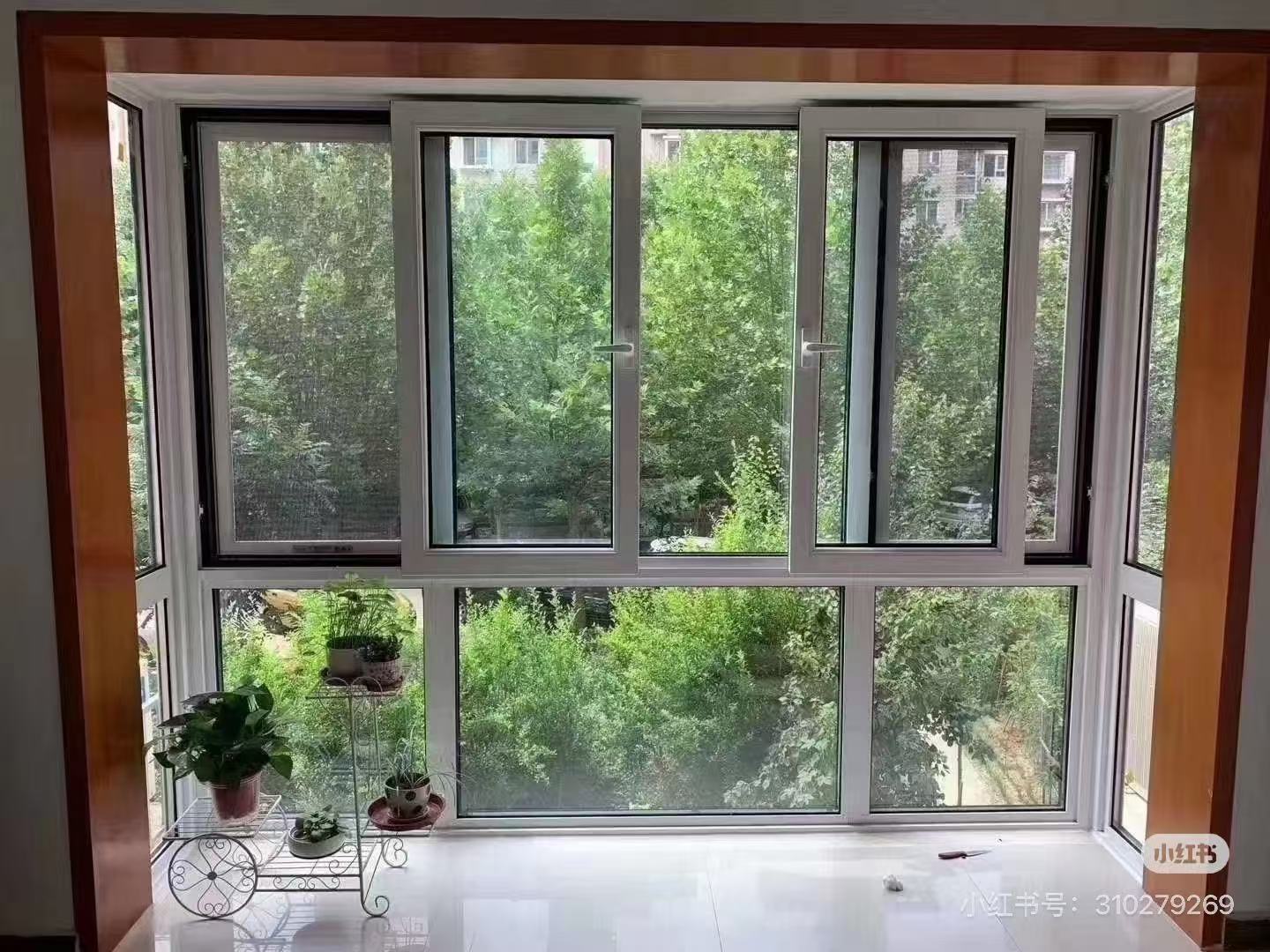

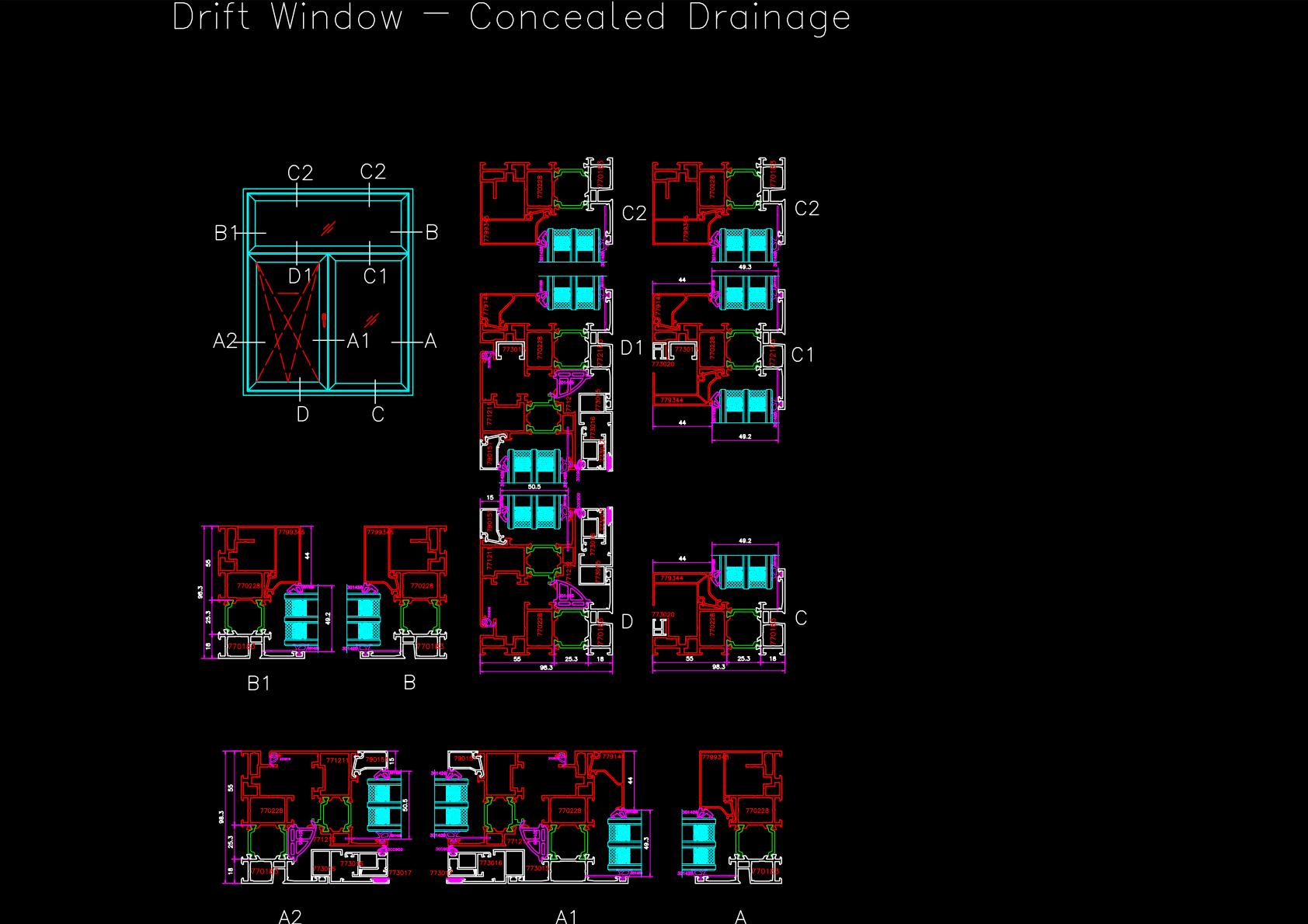

100 Series Drift Window
Innovative drift window technology combining the superior sealing of a casement window with the space-saving operation of a sliding window. Features an integrated security mesh and maximum thermal barriers for extreme climates.
Performance Data
- Integrated 304 stainless steel security mesh
- Translation-extrusion sealing mechanism
- Space-saving operation with casement air tightness
- Triple-cavity PA66 thermal break structure

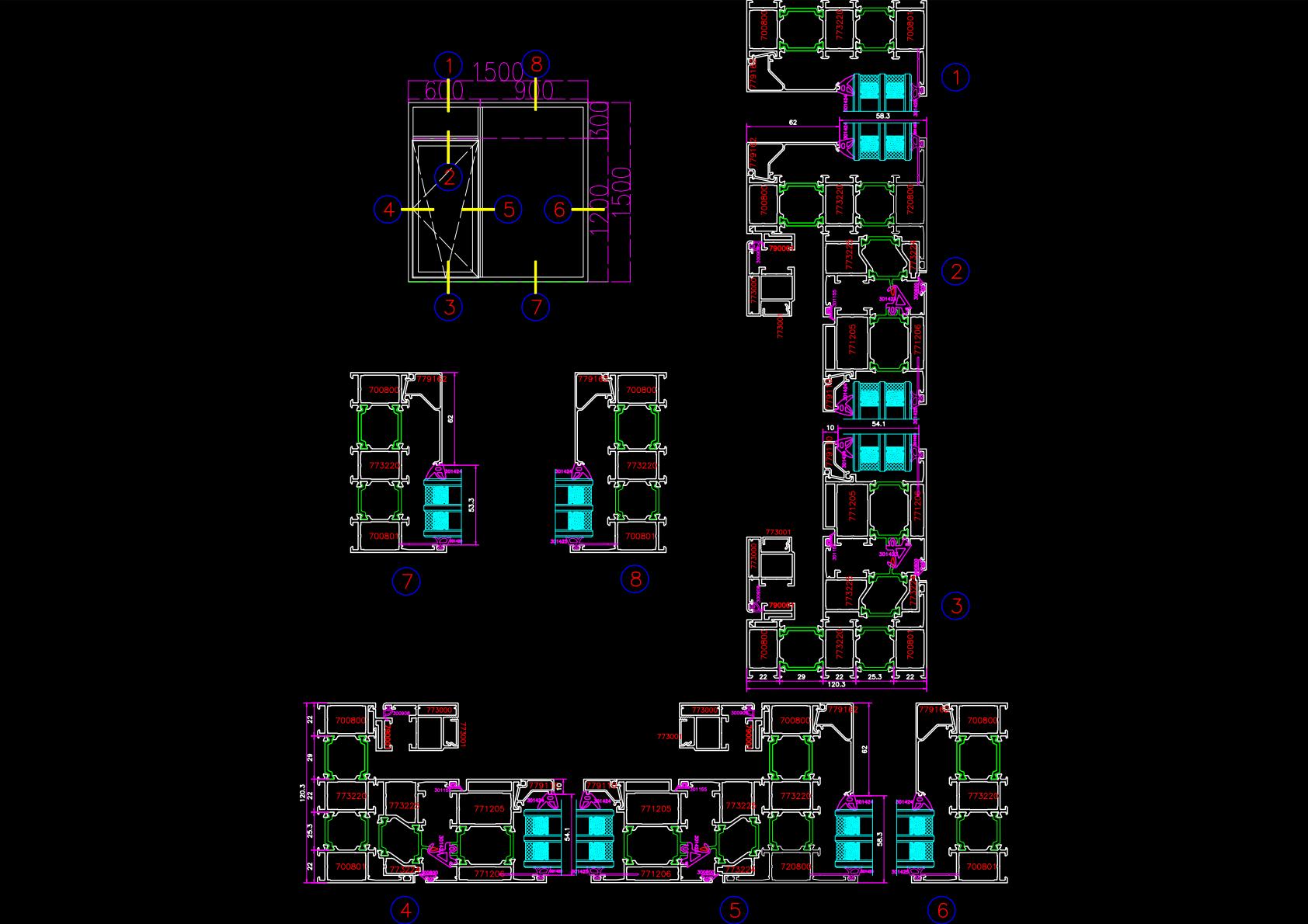

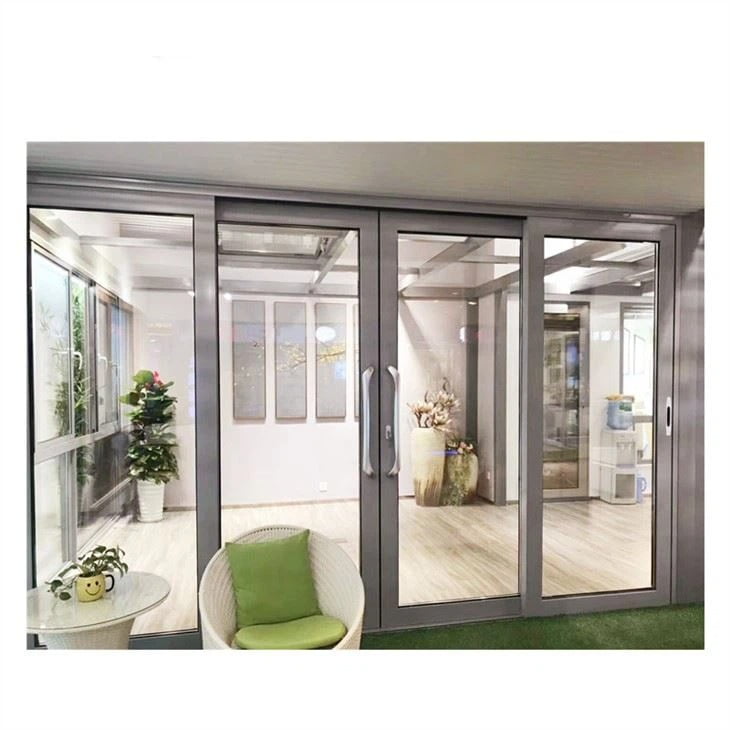

120-155 Lift & Slide Door System
The pinnacle of architectural opening solutions. Designed for expansive panoramic views without compromising on thermal or structural performance. Effortlessly operate sash weights up to 400kg.
Performance Data
- Heavy-duty hardware (400kg capacity)
- Flush sill option for seamless transition
- Exceptional weather sealing when lowered
- Ultra-large panoramic glass panels
Surface Treatments
In-house finishing capabilities ensuring color consistency, durability, and customization to match any architectural aesthetic.
Powder Coating
Environmentally friendly process offering an unlimited spectrum of RAL colors. Provides excellent resistance against UV rays, chipping, and fading.
- Matte, Gloss, and Textured finishes
- AkzoNobel / Tiger premium powders available
- 10-15 years warranty
Anodizing
Electrochemical process that converts the metal surface into a decorative, durable, corrosion-resistant, anodic oxide finish.
- Silver, Bronze, Black, Champagne
- Film thickness: 10μm - 25μm
- Metallic appearance that cannot peel

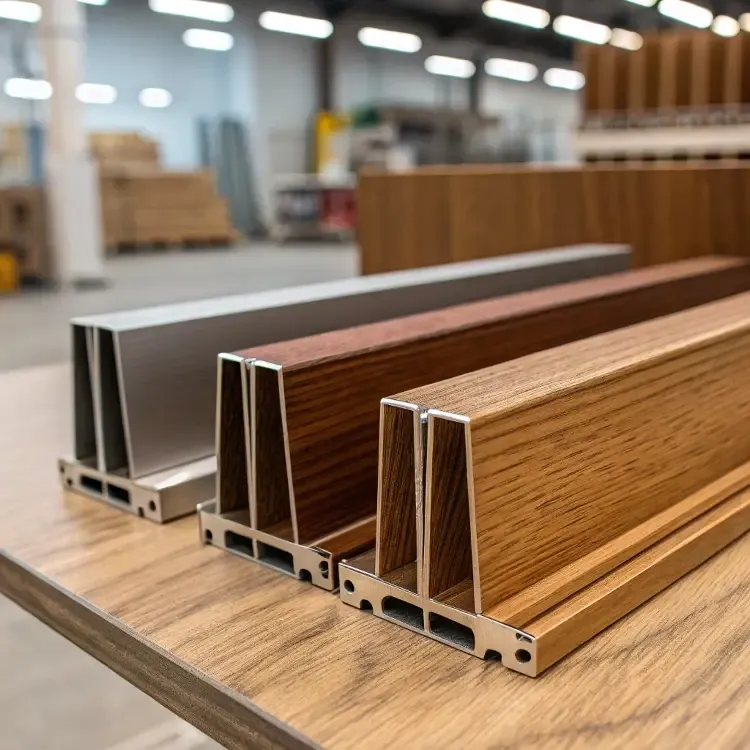

Wood Grain Transfer
Combines the strength and durability of aluminum with the natural, warm aesthetic of timber. Perfect for residential and hospitality projects.
- Oak, Teak, Walnut, Cherry patterns
- Vacuum sublimation technology
- Zero maintenance compared to real wood
PVDF Coating
Fluorocarbon coating providing the ultimate protection against harsh weather, pollution, and coastal environments. The standard for high-rise commercial facades.
- 2-coat or 3-coat systems
- PPG / Valspar paints
- 20+ years lifespan in extreme conditions
Engineered for Every Application

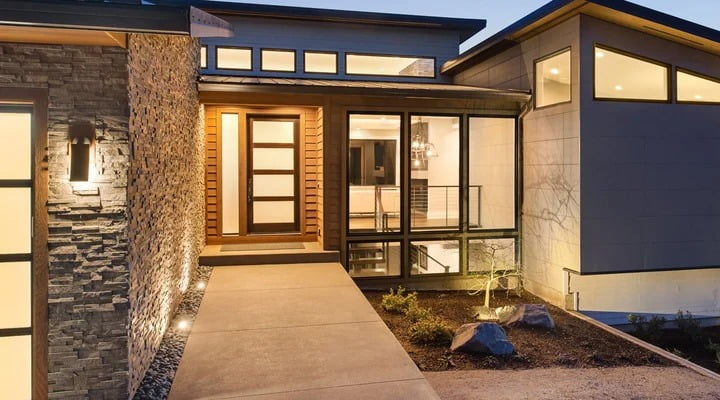

Residential & Villas
Focus on thermal comfort, acoustic privacy, and aesthetic finishes like wood grain or custom RAL colors.
Recommended: 65, 70 Series & 155 Lift/Slide

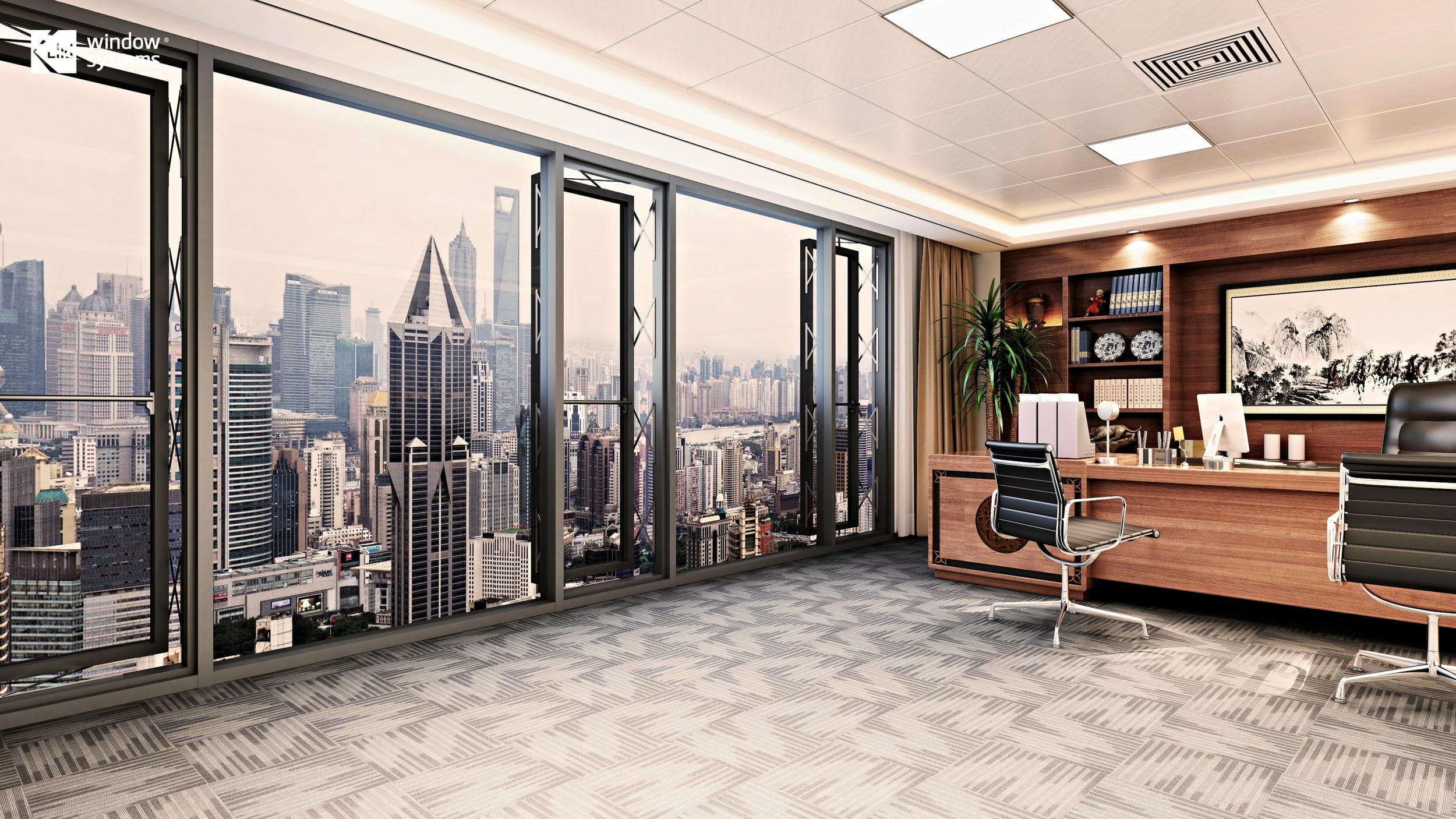

Commercial & High-Rise
Engineered for extreme wind loads, strict building codes, and large-scale architectural glazing.
Recommended: 80, 90, 100 Series & PVDF Coating
Let's Build
Together
Strictly B2B. Partner with our factory direct for your next large-scale architectural project. Our engineering team provides customized solutions, CAD drawings, and wholesale pricing within 24 hours.
